Custom Filter Cages for Industrial Dust Collection
Custom-manufactured filter cages for engineering companies, equipment suppliers and industrial service providers across Australia & New Zealand.
From drawings to detailed specifications, we help you define the right cage configuration for your project.
• Extensive Tooling — Over 1,000 tooling sets covering a comprehensive range of cage designs and components.
• Q235 Bright Steel Wire — Our carbon steel cages are manufactured using Q235 bright steel wire.
• High-Temperature Silicone Powder Coating — For silicone-coated cages, we use high-temperature silicone powder from established brands.
Discuss Your Requirements

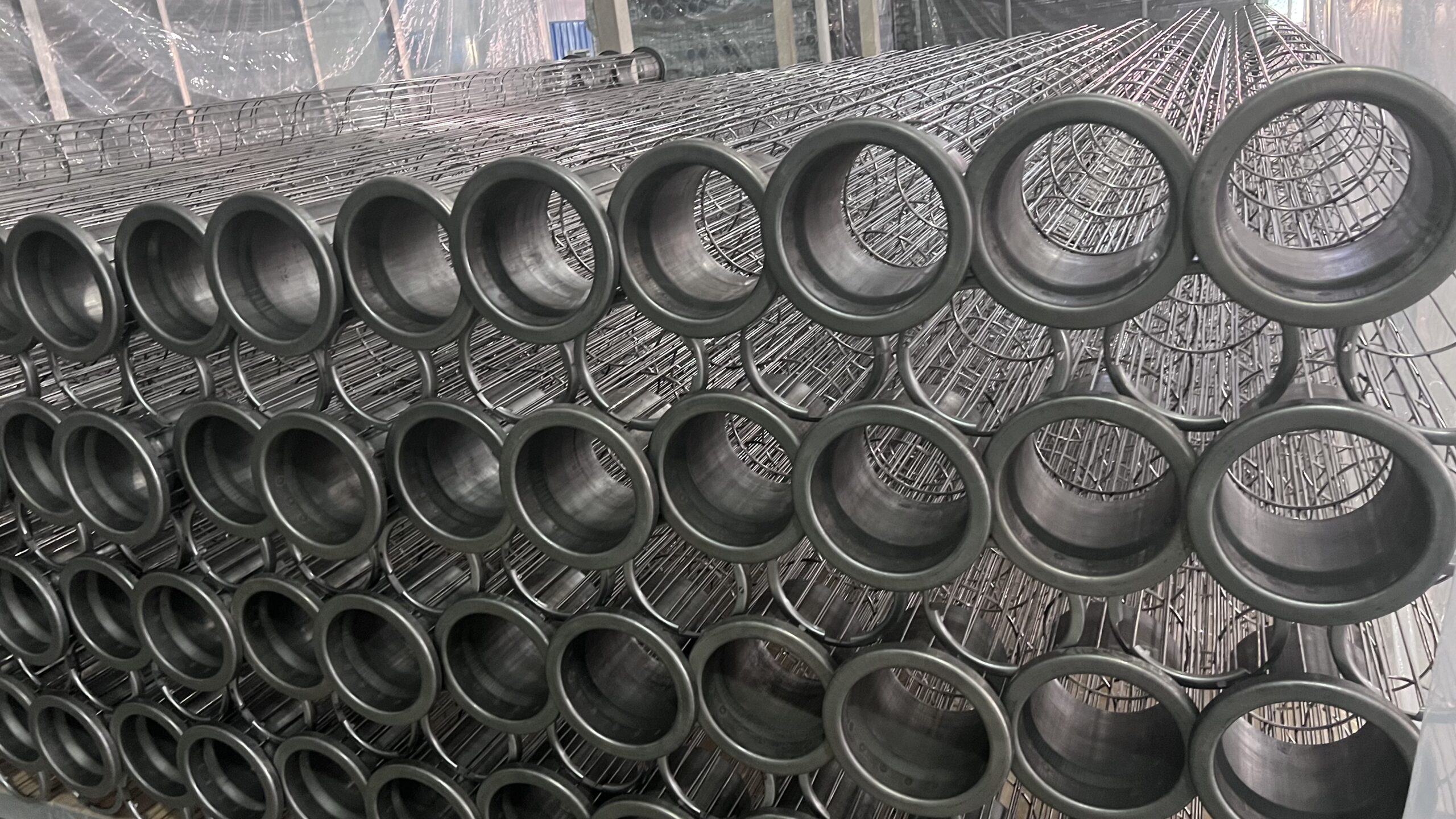

ROUND CAGES
| Item | Cage body O.D. (mm) Customized available | Longitudinal wire quantity | Total length (mm) Customized available | Logitudinal wire diameter (mm) | Ring diameter (mm) | Distance of rings (mm) | Material and Surface treatment | Vanturi | |
| 1 | Single Junction |
70-200 |
6, 8, 10, 12, 14, 16, 18, 20, 24 | 200-10000 |
2.0-4.0 |
3.0-5.0 |
150-210 |
Carbon Steel with silicon coating; |
available |

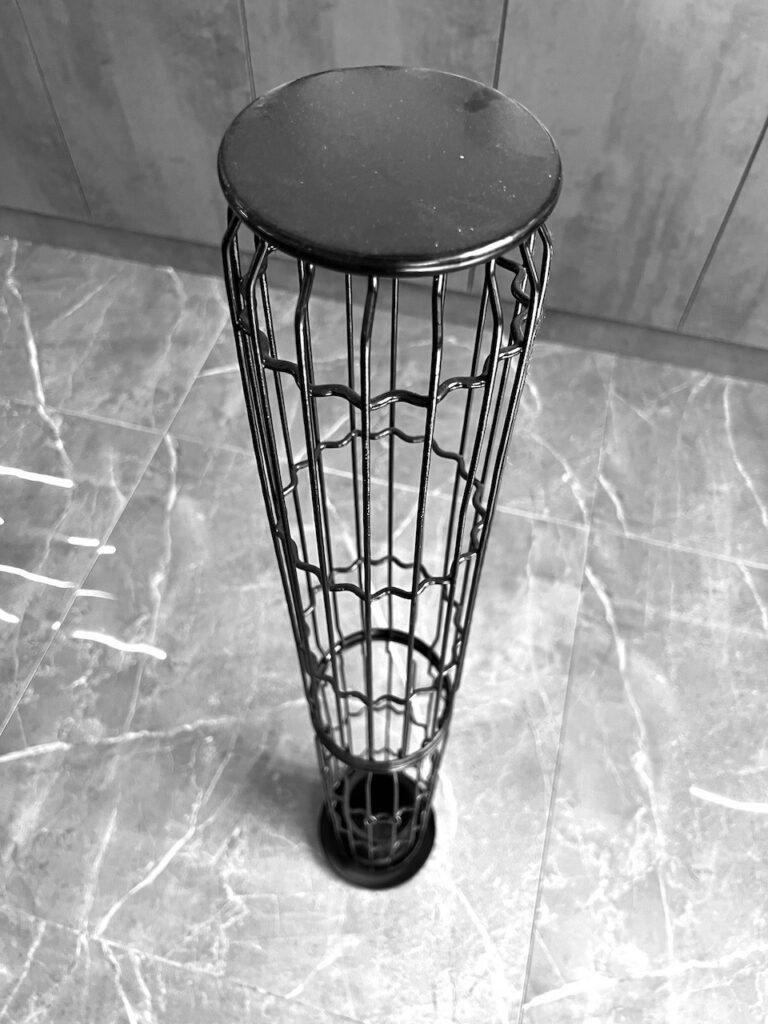

| 2 | Starlike | 500-12000 | |||||||
| 3 | Multiple Junction with clamping bottom cover |
1000-12000 | |||||||
| 4 | Multiple Junction with spiral bottom cover | ||||||||
| 5 | Multiple Junction with plug-in bottom cover | ||||||||
| 6 | Multiple Junction with snap-in bottom cover |
FLAT CAGES
| Item | Longitudinal wire quantity | Total length (mm) Customized available | Logitudinal wire diameter (mm) | Ring diameter (mm) | Distance of rings (mm) | Material and Surface treatment | Junction | Other option | |
| 1 | Plate Type | 10, 14, 16 | 2000-12000 |
2.0-4.0 |
3.0-5.0 |
150-210 |
Carbon Steel with silicon coating; | Plate and Spring hook | |
| 2 | Big Flat type | even number > 18 | 2000-8000 | Plate and Spring hook | Rings with strength wire | ||||
| 3 | Rhombic Type | 8, 10, 12, 14, 16 |
1000-6000 |
single Junction | Top cover with strength wire; Bottom hook or iron | ||||
| 4 | Flat type | 8, 10, 12, 14, 16 |
2000-6000 | single Junction | Top cover is plate with strength wire | ||||
| 5 | Oval type | 8, 10, 12, 14, 16 | single Junction | Oval Rings | |||||
| 6 | Trapezoid Type | 8, 10, 12, 14, 16 | single Junction | Trapezoid Rings | |||||
| 7 | 8-shape Type | 10 | 1000-6000 | Single or Multiple Junctions | 8-shape Rings |
Folding cages (set with folding bags)
Item | Cage body O.D. (mm) Customized available | Longitudinal wire quantity | Total length (mm) Customized available | Logitudinal wire diameter (mm) | Ring diameter (mm) | Distance of rings (mm) | Material and Surface treatment | Junction | Wires | |
| 1 | Folding cages with single wire |
120-155 | 8, 10, 12 |
1000-6000 |
2.0-4.0 |
4.0 |
150-210 | Carbon Steel with silicon coating; Carbon Steel with galvanized; SS304 / SS316 |
Single or multiple Junctions | Single wire |
| 2 | Folding cages with double wires | 8, 10 | Double wires |

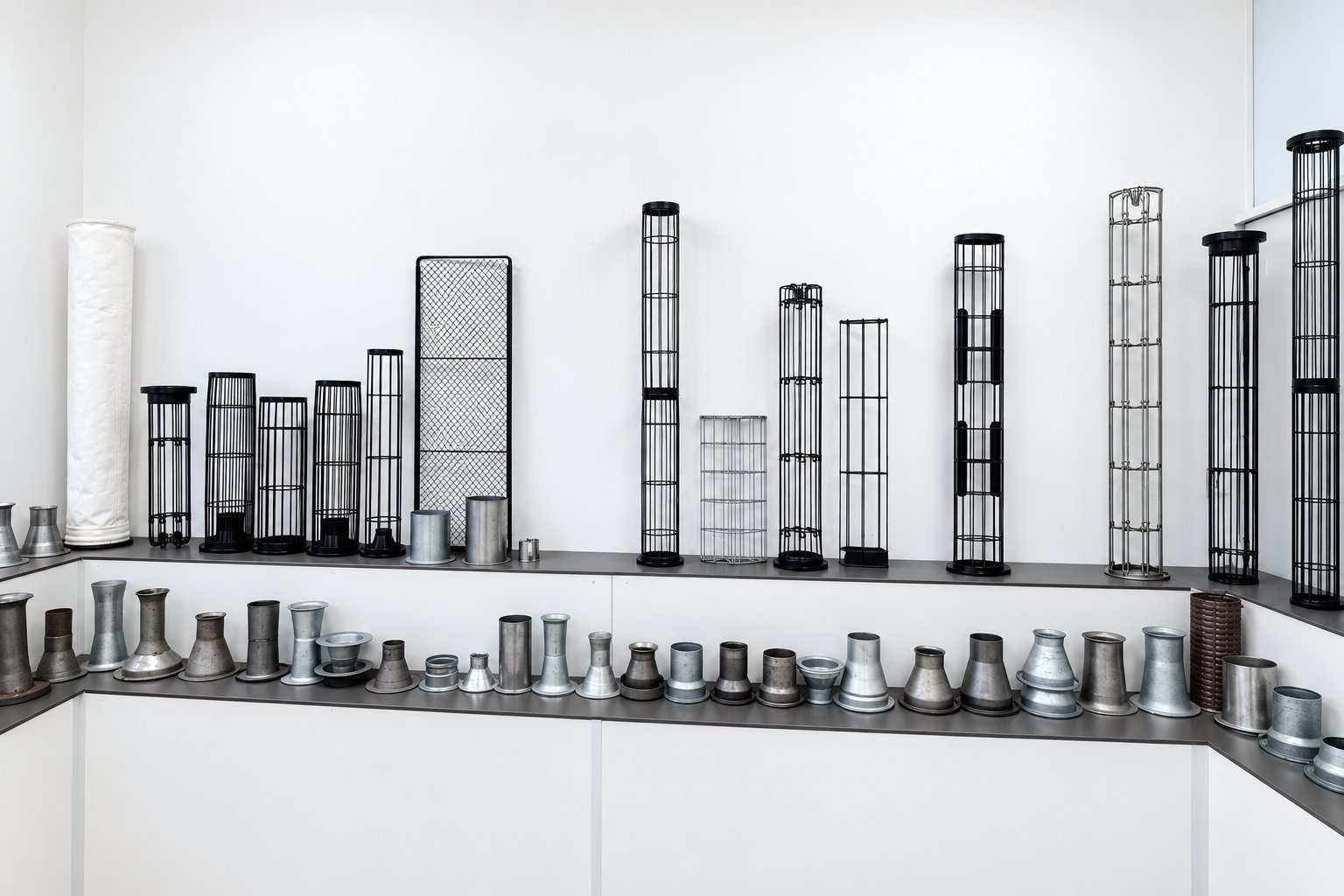

Wire, Venturi, Accessory
Let’s Discuss Your Filter Cage Requirements
Send us your drawings, dimensions or photos of your existing cages. We’ll work with you to confirm the cage configuration, material and surface treatment for your application.
For a more accurate quotation, please include the quantity required, operating conditions and any specific connection or venturi requirements.
